Simple project for Node.js with Express.js and Docker

4 min read

Description

I made this simple project to learn and to provide example of how to make simple API in Node.js with Express.js middleware (and Typescript but what did you expect 😅).

This project was made to be simple example, how to implement API with Express and to have a simple to understand documentation for every one to use and learn.

Link to GitHub repo here.

If you find a bug or want to suggest a new feature, feel free to create an issue on GitHub page

Practical use

I use this by myself to check if DDNS I use is correctly running and pointing to my homelab. The service is running on docker, managed by Portainer and behind Nginx Proxy Manager. I check if the service is up with Uptime-Kuma, this way I can see if all parts of the chain are working correctly.

Technical specification

API Endpoint

  • HTTP request to http://address:port/healthcheck or http://address:port/
  • return JSON {"Status" : "OK"} or plaintext OK
  • If the endpoint is disabled will return 404 status

Tech stack

How to get started with development

Visit GitHub page

The code overview

Below are just short code snippets, check the GitHub for full source files.

Main source files

Overview of the main source files. If you see ... then I left the code out because is not important or repeating.

index.ts

In the index.ts we load the configuration and start the Express HTTP server. After that, we let know the user what configuration we are running and if it’s incorrect we terminate the application.

ts
dotenv.config(); // initialize configuration for .env file
// start HTTP server to be listeningapp.listen(port, host, () => {	log.info(`⚡️ : Server is running at http://${host}:${port}`);	checkEnvEndpoints(); // show what setting we are using and check if they are correct});

app.ts

In app.ts we initialize the Express.js HTTP server, we set it up to use JSON middleware and our routes defined in routes.ts. Other than, we load the server settings from environment variables.

ts
// loading the config variables for server and routes configexport const port = Number(process.env.PORT ?? 8082);...export let rootRes = Boolean(process.env.ROOT_RES ?? true);
const app = express(); // init expressapp.use(express.json()); // init to use json middlewareroutes(app); // load our routes (defined in routes.ts)
export default app; // export app express object (used mostly in index.ts)
// helper function to setup env variables outside of app.ts (used for testing)export function setEnv(JSON: boolean, endpoint: boolean, root: boolean) {...}

routes.ts

In routes.ts we register and define behavior of our routes.

ts
// default function to handle route registrationexport default function (app: Express) {	// define a route handler for the root route	app.get('/', (req: Request, res: Response) => processRoot(req, res));
	//define a route for the /healthcheck route	app.get('/healthcheck', (req: Request, res: Response) => processEndpoint(req, res));}
// handle root routefunction processRoot(req: Request, res: Response) {	if (rootRes) res.send(processMessage(req, res)); // if enabled respond	else res.sendStatus(404); // if not return 404}
// handle /healthcheck routefunction processEndpoint(req: Request, res: Response) {...}
// log request (if testing) and response with JSON or plaintext based on settingsfunction processMessage(req: Request, res: Response) {	if (process.env.NODE_ENV != 'test') log.info(`⚡️ : Request from: ${req.ip}`);
	if (useJSON) {		res.type('json'); // set response type		return '{"status": "OK"}'; // return response	} else {...}}

Testing

I am using Jest for testing. No real preference here, more like I found it after quick search and was pretty easy to use. Sometimes I use Postman for API testing and development, it has really nice interface and it is configurable, but it is completely separated from your codebase what may make you duplicate a some code.

In jest.config.js

js
/** @type {import('ts-jest/dist/types').InitialOptionsTsJest} */module.exports = {	preset: 'ts-jest',	testEnvironment: 'node'};

In folder __tests__ and file app.test.ts

ts
// setup before all tests beginbeforeAll(() => {	process.env.NODE_ENV = 'test'; // set env var to test to enable logs});
// setup before each testbeforeEach(() => {	server = app.listen(port, host); // start express server});
// after each test is doneafterEach(() => {	server.close(); // stop the express server});
// testing endpoint /healthcheckdescribe('ENDPOINT: /healthcheck', () => {	// test JSON response	it('JSON         - 200', async () => {		// set env var for the test		// enable JSON and healthcheck endpoint disable root endpoint		setEnv(true, true, false);
		const res = await request(app).get('/healthcheck'); // run request
		expect(res.statusCode).toBe(200); // check for 200		expect(res.body).toEqual({ status: 'OK' }); // check for JSON response	});
	// test plaintext response	it('TEXT         - 200', async () => {		// set env var for the test		// enable plaintext and healthcheck endpoint disable root endpoint		setEnv(false, true, false);
		const res = await request(app).get('/healthcheck'); // run request
		expect(res.statusCode).toBe(200); // check for 200		expect(res.text).toEqual('OK'); // check for plaintext response	});
	// test if we contact root when disabled we get 404	it('/            - 404', async () => {		// set env var for the test		// enable plaintext and healthcheck endpoint disable root endpoint		setEnv(false, true, false);
		const res = await request(app).get('/'); // run request
		expect(res.statusCode).toBe(404); // check for 404	});});

We run test with command npm run test and output will look like somthing this

text
 PASS  __tests__/app.tests.ts  ENDPOINT: /healthcheck    ✓ JSON         - 200 (14 ms)    ✓ TEXT         - 200 (2 ms)    ✓ /            - 404 (1 ms)  ENDPOINT: /    ✓ JSON         - 200 (2 ms)    ✓ TEXT         - 200 (1 ms)    ✓ /healthcheck - 404 (2 ms)  ENDPOINT: both    ✓ /            - 404 (1 ms)    ✓ /healthcheck - 404 (1 ms)Test Suites: 1 passed, 1 totalTests:       8 passed, 8 totalSnapshots:   0 totalTime:        0.977 sRan all test suites.

Docker and docker-compose

We use GitHub docker repository to distribute the project. Also docker is easy way to run it on server.

Dockerfile

To make a docker container we need to make a dockerfile. And build it. This dockerfile has two stages.

  • 1st stage to build the project (transpile TS to JS)
  • 2nd stage is to run the project (the JS files)
dockerfile
# stage one# we base you dockerfile on alpine linux with node preinstalledFROM node:16.15.1-alpine AS node-build
# set our work directoryWORKDIR /usr
# copy package.json tsconfig.json and all the source filesCOPY package.json ./COPY tsconfig.json ./COPY src ./src
# run npm to install packages and build the projectRUN ls -aRUN npm installRUN npm run build
# stage two# again we base the package on alpine linux with nodeFROM node:16.15.1-alpineWORKDIR /usr
# set environment variable that we are in productionENV NODE_ENV production
# now we have builded the project so we copy only package.json and install themCOPY package.json ./RUN npm install
# we copy the builded source files only and install pm2 package globally# pm2 (production manager) will let out app run indefinitely (and som other stuff)COPY --from=0 /usr/build/src .RUN npm install pm2 --location=global
# start the applicationCMD ["pm2-runtime","index.js"]

Running dockerfile locally in docker

  • run command docker build . (you have to be in healthcheck folder)
  • after the build you will get message like this Successfully built df158448c3a7
  • copy the string with numbers and letters and run command docker run -p 8082:8082 df158448c3a7 argument -p is to publish a port so we can it access the API from outside of the container
  • now you are running the project on you machine in docker! Access the API by opening localhost:8082/ in your browser or you can use Postman/Insomnia

Docker-compose

If you want to deploy this project on your server the easiest way is to use docker-compose. It’s nicely reusable and readable.

yaml
version: '3.0'services:  healthcheck: # name of the service    image: ghcr.io/matus-barta/healthcheck:latest # addres to the image in the repository    container_name: healthcheck # name of the container    environment: # here we setup our env vars      - PORT=8082 # listening port      - HOST="localhost" # listening IP address      - ROOT_RES="true" # https://<domain>/      - ENDPOINT_RES="false" # https://<domain>/healthcheck      - JSON_RES="true" # response in JSON    ports:      - 8082:8082 # ports we will be listening on (external port : internal port)    restart: unless-stopped # dont stop the service    security_opt:      - no-new-privileges:true # some security stuff not really needed

GitHub Actions

I was thinking to add part about GitHub Actions but honestly I don’t understand it enough to run you thru it what it does. I based it on Techno Tim’s project LittleLink. Also good GitHub Actions explanation by Fireship on YT.

Using the Healthcheck

To start, you will need machine running docker service. See how to install docker on Ubuntu.

  • For docker management I recommend Portainer. How to install here, video how to install and use here.
  • If you want to have the Healthcheck accessible from the internet, you will need to setup NAT on your router to forward http traffic to the container or you can use Reverse Proxy like Nginx Proxy Manager.

To automatically check the Healthcheck is online, I use Uptime-Kuma with notifications sent to Telegram (or you can use Discord and many other messaging platforms)

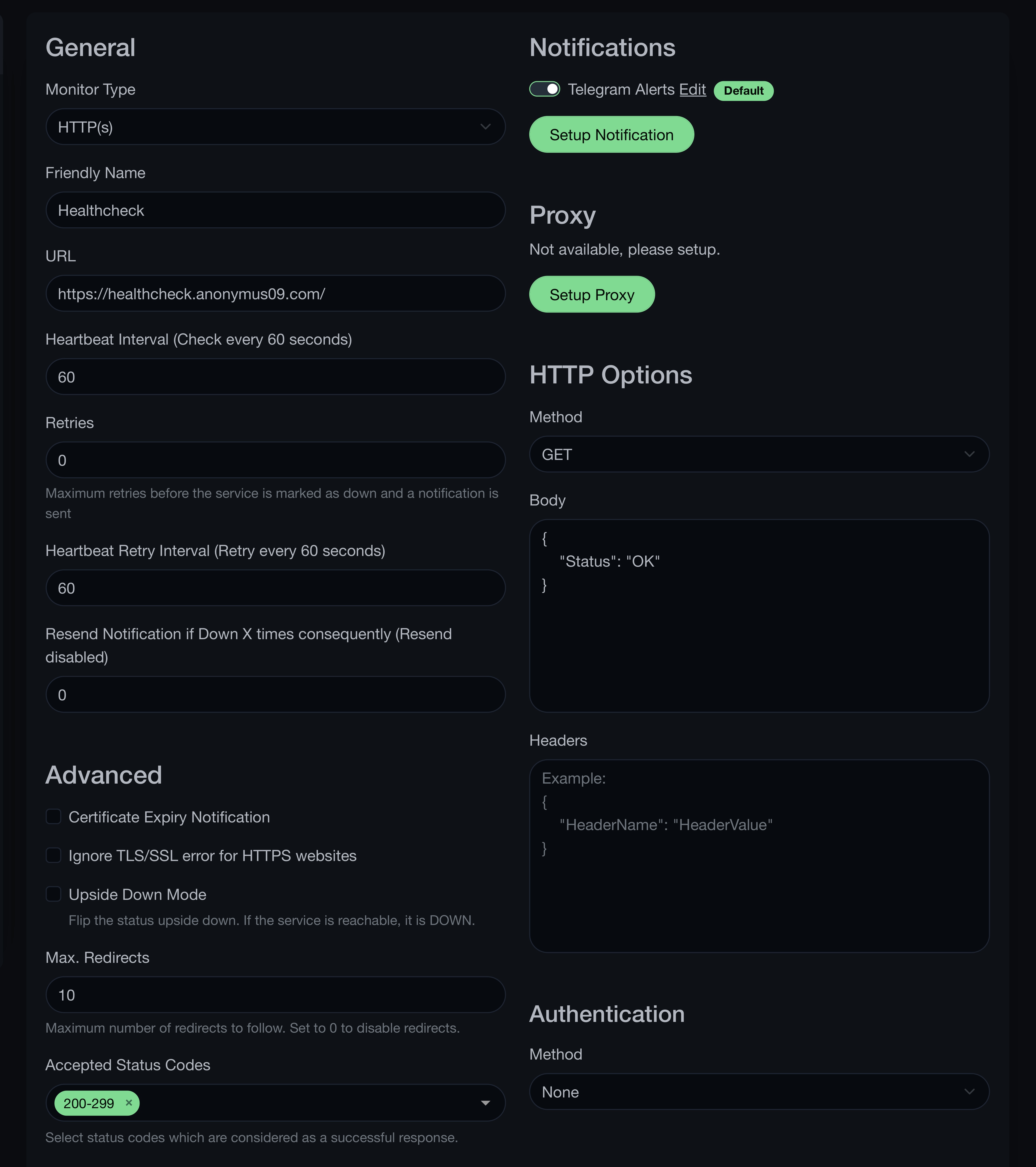

Here are my Uptime-Kuma setting for the Healthcheck Uptime-Kuma-Settings

Ending thoughts

Hope you find this simple project useful for your homelab or as a way to learn how to make you own simple API. Healthcheck is not something made for real production or as example “how it should be done”. No I am just development and homelab enthusiast so, if this has at least some usefulness for you, I will be super extremely happy. Enjoy your day!
